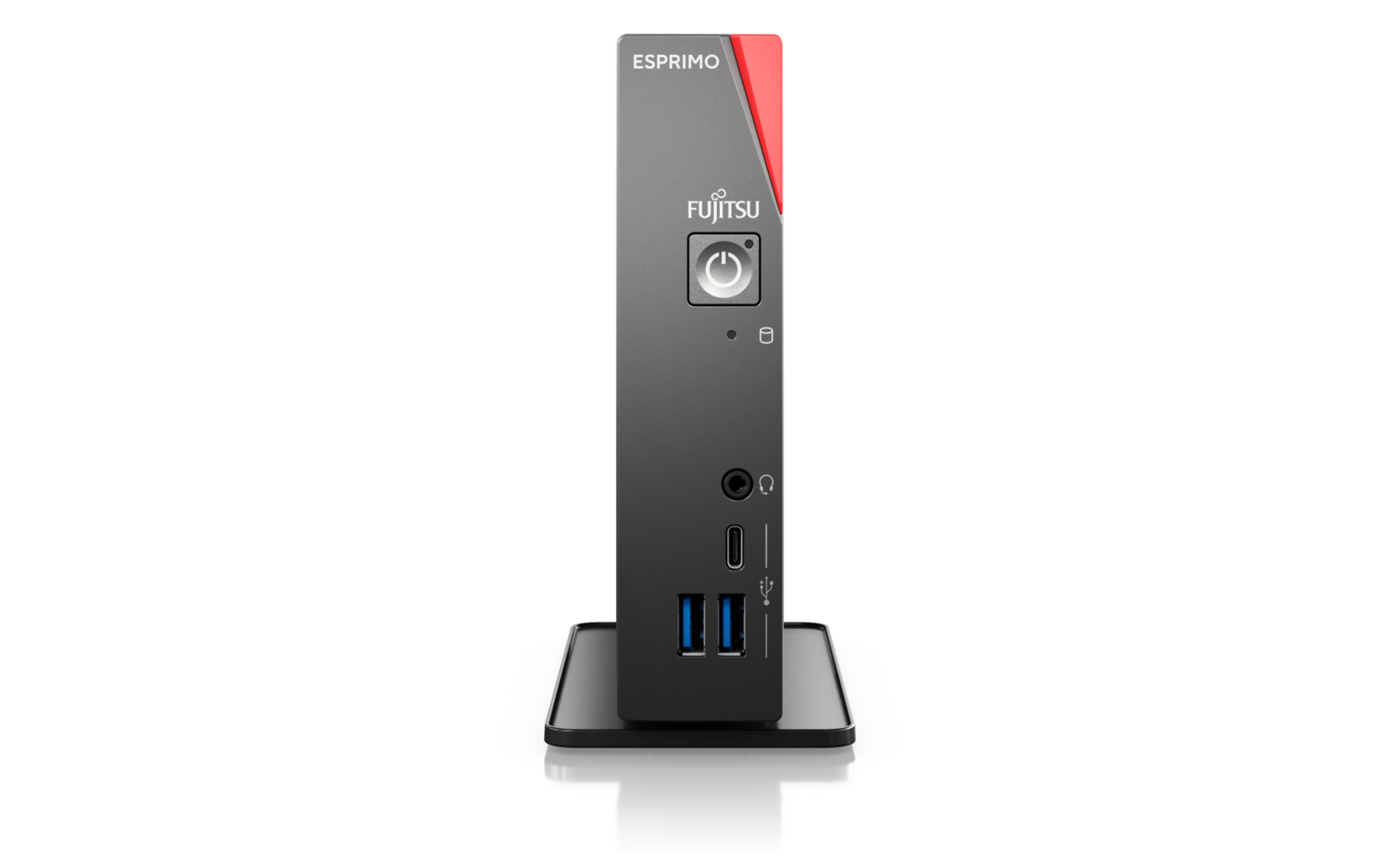

USFF/i5-12400/16GB/512/WIFI/Thunderbolt/5y
Intel vPro Platform, BASE UNIT with Mainboard D4014-A (standard version) resp. D4015-A (Thunderbolt 4 version)
CHIPSET: Intel Q670, MEMORY: 2 DIMM slots (DDR4, 3200 MT/s) with max. 64 GB, dual channel support (for dual channel performance 2 memory modules have to be ordered, capacity per channel has to be the same)
GRAPHICS onboard: Intel UHD Graphics 730 or 770
AUDIO: Realtek ALC257N, LAN: 10/100/1000 Mbit/s, Intel LAN I219LM
SLOT: 1x optional (Low Profile, PCIe 3.0 x4 (mech. x16))
DRIVE bays: 1x M.2 onboard; 2nd M.2 and 1x 2.5-inch internal optional, 1x slim ODD drive optional
INTERFACES:
Front: 1x Headset, 1x USB 3.2 (gen1, Type A), 1x USB 3.2 (gen2, Type A), 1x USB 3.2 (gen2x2, Type C)
Rear: 1x DisplayPort, 1x HDMI, 1x LAN (RJ45)
Rear (base system): 1x USB 2.0 Type-A, 3x USB 3.2 (gen 2, Type-A), 1x USB 3.2 (gen 2, Type-C, 10 Gbps, supports DisplayPort 1.4 and power delivery sink); one flexible connector to be used for LAN-, graphics- or USB options
Rear (Thunderbolt4 version): 2x USB 3.2 (gen 1, Type-A), 3x USB 3.2 (gen 2 Type-A), 1x Type-C Intel® Thunderbolt™ (40 Gbps, supports DisplayPort 1.4 and power delivery sink)
Footstand for vertical position is included
internal speaker included, intrusion switch included
Housing small with Thunderbolt 4 and AC-Adapter 19V/90W
Intel Core i5-12400
16GB DDR4-3200
SSD PCIe 512GB M.2 NVMe SED Value (Gen4)
Mounting kit for 2.5' or second M.2
Intel Wi-Fi 6E AX211 and BT5.2 vPro
Keyboard KB410 USB Black GR/US
Optical USB mouse black
No Operating System
TPM 2.0 module
VESA Adapter ESPRIMO G, Mounting Kit for height adj. FJ displays
Warranty 5 years OnSite
